Multi-interfaces:RS485,RS232,RS422,CAN;supports connection of P1 meter;
Dual SIM chips,supporting on-grid project that requires private network power supply;
Support magnetic latching relay controlling 250VAC/16A circuit externally;
Support static page configuration or upgrade,Local/remote multi-mode monitoring;
Standard accessory:8GB TF card;supports 20-year storage;data in solarman platform will be saved permanently;
Support importing data and error history via USB;
Support multi-channel digital/analog input interface;support grid dispatching,sensor and multi-scenarios;
Embedded super capacitor supports power-off reminder;Simplify plant O&M significantly;
SOLARMAN Pro version supports intellingent plant management.

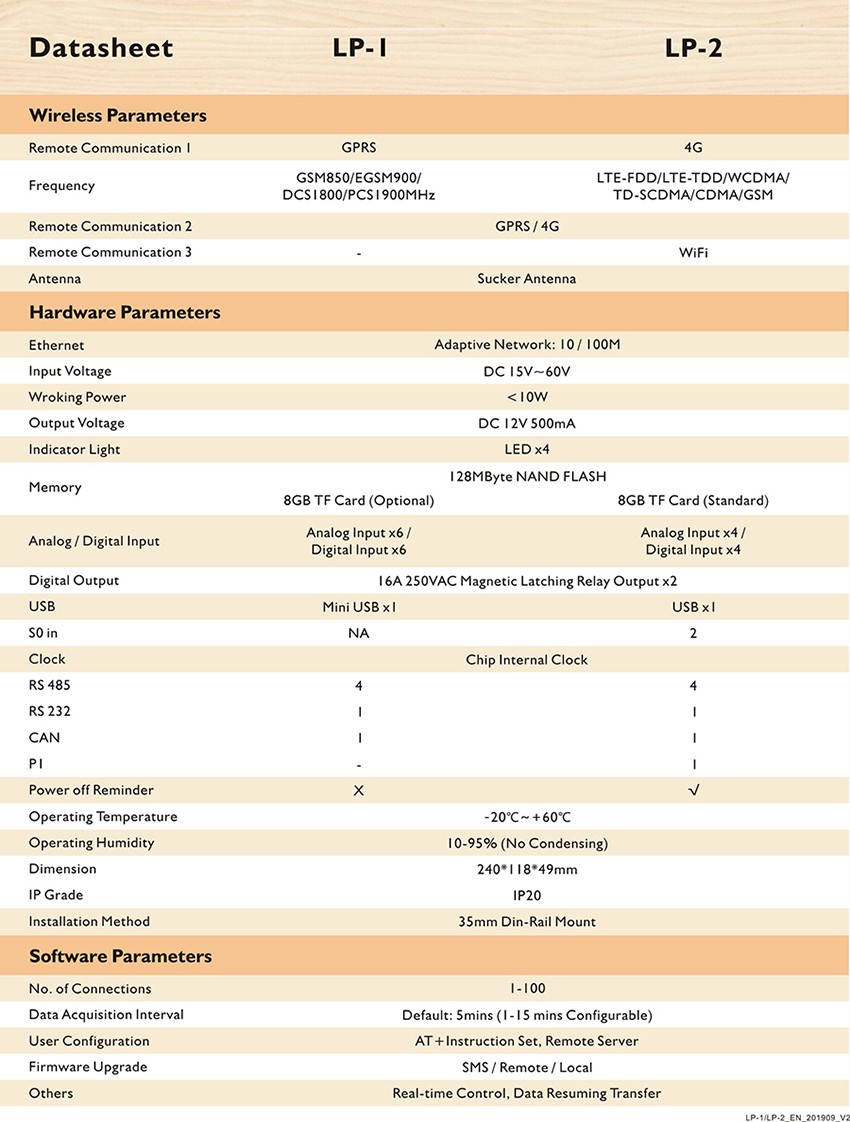

Datasheet | LP-1 | LP-2 |
Wireless Parameters | ||
Remote Communication 1 | GPRS | 4G |
Frequency | GSM850/EGSM900/ DCS1800/PCS1900MHz | LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/CDMA/GSM |
Remote Communication 2 | GPRS/4G | |
Remote Communication 3 | - | WiFi |
Antenna | Sucker Antenna | |
Hardware Parameters | ||
Ethernet | Adaptive Network: 10/100M | |
Input Voltage | DC 15V~60V | |
Working Power | <10W | |
Output Voltage | DC 12V 500mA | |
Indicator Light | LED X4 | |
Memory | 128Mbyte NAND FLASH 8GB TF Card(Optional) 8GB TF Card(Standard) | |
Analog/Digital Input | Analog Input x6/ Digital Input x6 | Analog Input x4/ Digital Input x4 |
Digital Output | 16A 250VAC Magnetic Latching Relay Output x2 | |
USB | Mini USB x 1 | USB x 1 |
S0 in | NA | 2 |
Clock | Chip Internal Clock | |
RS 485 | 4 | 4 |
RS 232 | 1 | 1 |
CAN | 1 | 1 |
PI | - | 1 |
Power off Reminder | × | √ |
Operating Temperature | -20℃~+60℃ | |
Operating Humidity | 10-95%（No Condensing） | |
Dimension | 240*118*49mm | |
IP Grade | IP20 | |
Installation Method | 35mm Din-Rail Mount | |
Software Parameters | ||
No. of Connections | 1-100 | |
Data Acquisition Interval | Default: 5mins(1-15mins Configurable) | |
User Configuration | AT+Instruction Set, Remote Server | |
Firmware Upgrade | SMS/Remote/Local | |
Others | Real-time, Data Resuming Transfer | |
