OOITECH ME 5KTL-3PH  Coupled Energy Storage Inverter
OOITECH ME 5KTL-3PH  Coupled Energy Storage Inverter

OOITECH ME 5KTL-3PH Coupled Energy Storage Inverter

Time: 2021-12-28
visits: 111
PV Out Power: Storage System
Phase: Three Phase
Grid: Storage
Details

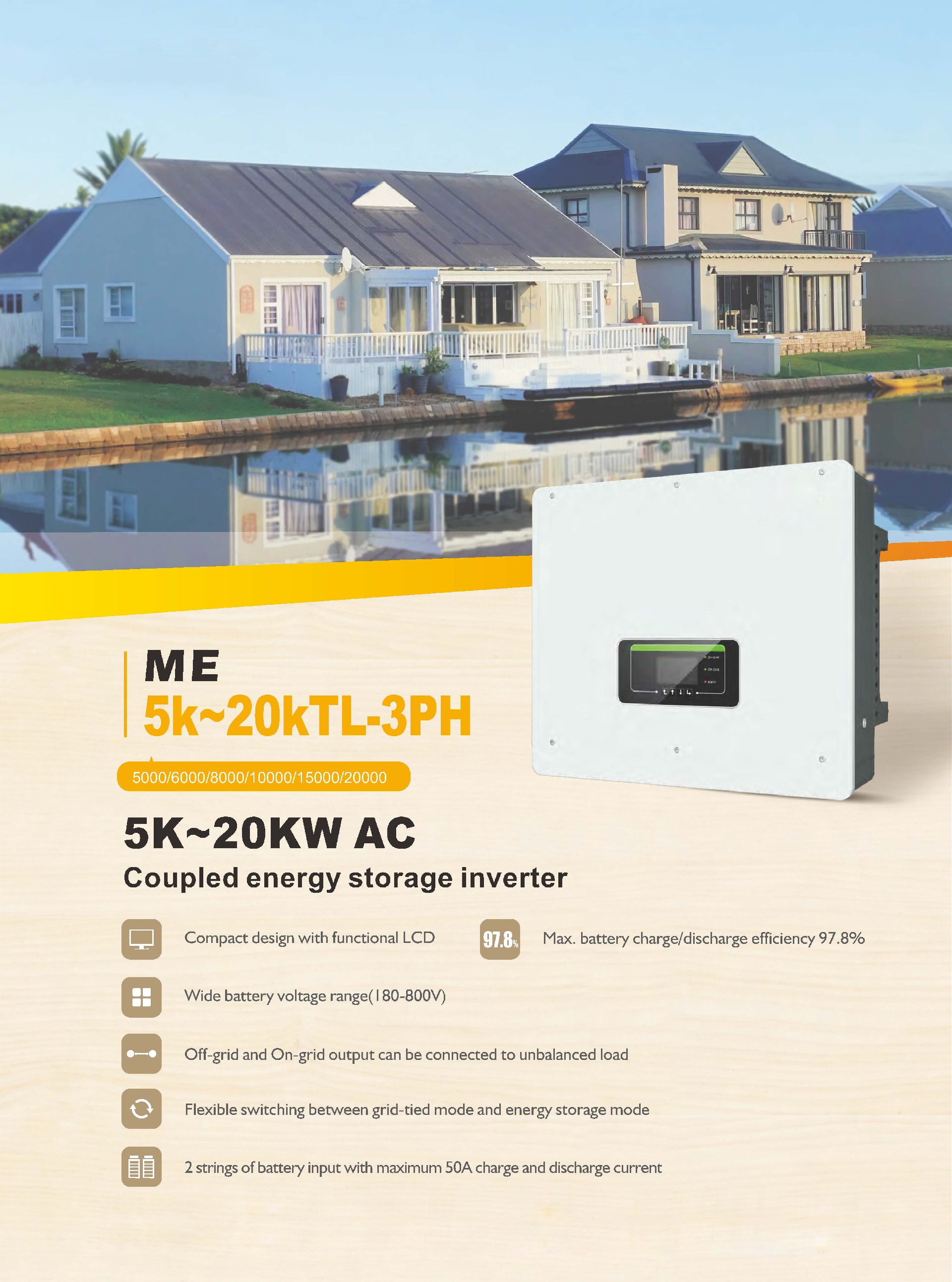

Feature:

1. Compact design with functional LCD

2. Max. battery charge/ discharge efficiency 97.8%

3. Wide battery voltage range(180-800V)

4. Off-grid and On-grid output can be connected to unbalanced load

5. Flexible switching between grid-tied mode and energy storage mode

6. 2 strings of battery input with maximum 50A charge and discharge current

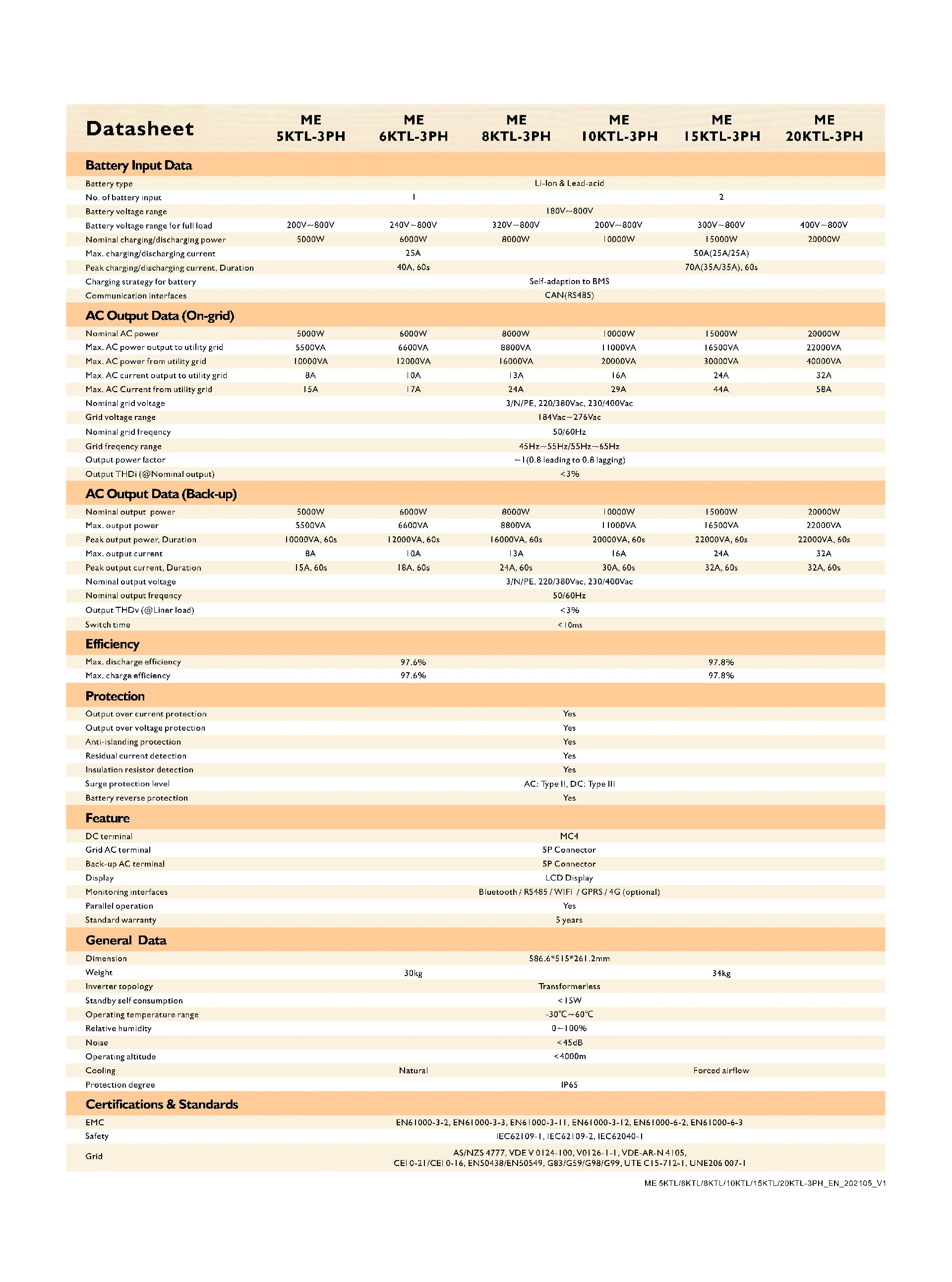

Datasheet

ME 5KTL-3PH

ME 6KTL-3PH

ME 8KTL-3PH

ME 10KTL-3PH

ME 15KTL-3PH

ME 20KTL-3PH

Battery Input Data

Battery type

Li-lon & Lead-acid

No. of battery input

1

2

Battery voltage range

180V~800V

Battery voltage range for full load

200V-800V

240V-800V

320V-800V

200V-800V

300V-800V

400V-800V

Nominal charging/discharging power

5000W

6000W

8000W

10000W

15000W

20000W

Max. charging/discharging current

25A

50A(25A/25A)

Peak charging/discharging current,   Duration

40A, 60s

70A(35A/35A),  60s

Charging strategy for battery

Self-adaption to BMS

Communication  interfaces

CAN(RS485)

AC Output Data (On-grid)

Nominal AC power

5000W

6000W

8000W

10000W

15000W

20000W

Max. AC power output to utility grid

5500VA

6600VA

8800VA

11000VA

16500VA

22000VA

Max. AC power from utility grid

10000VA

12000VA

16000VA

20000VA

30000VA

40000VA

Max. AC current output to utility grid

8A

10A

13A

16A

24A

32A

Nominal grid voltage

3/N/PE, 220/380Vac, 230/400Vac

Grid voltage range

184Vac~276Vac

Nominal grid frequency

50/60Hz

Grid frequency range

45Hz~55Hz/55Hz~65Hz

Output power factor

                                                                                             ~1(0.8   leading to 0.8 lagging)

Output THDi (@Nominal output)

<3%

AC Output Data (Back-up)

Nominal output power

5000W

6000W

8000W

10000W

15000W

20000W

Max. output power

5500VA

6600VA

8800VA

11000VA

16500VA

22000VA

Peak output power, Duration

10000VA, 60s

12000VA, 60s

16000VA, 60s

20000VA, 60s

22000VA, 60s

20000VA, 60s

Max. Output current

8A

10A

13A

16A

24A

32A

Peak output current, Duration

15A, 60s

18A, 60s

24A, 60s

30A, 60s

32A, 60s

32A, 60s

Nominal output voltage

3/N/PE, 220/380Vac, 230/400Vac

Nominal frequency

50Hz/60Hz

Output THDv (@Liner load)

<3%

Switch time

<10ms

Efficiency

Max. discharge efficiency

97.6%

97.8%

Max. charge efficiency

97.6%

97.8%

Protection

Output over current protection

Yes

Output over voltage protection

Yes

Anti-islanding protection

Yes

Residual current detection

Yes

Insulation resistor detection

Yes

Surge protection level

AC: Type II, DC: Type III

Battery reverse protection

Yes

Feature

DC terminal

MC4

Grid AC terminal

5P Connector

Back-up AC terminal

5P Connector

Display

LCD Display

Monitoring interfaces

Bluetooth / RS485 / WIFI / GPRS / 4G (optional)

Parallel operation

Yes

Standard warranty

5 years

General Data

Dimension

586.6*515*261.2mm

Weight

30kg

34kg

Inverter topology

Transformer-less

Standby self consumption

<15W

Operating temperature range

-30~60

Relative humidity

0~100%

Noise

<45dB

Operating altitude

<4000m

Cooling

Natural

Forced airflow

Protection degree

IP65

Certifications & Standards

EMC

EN61000-3-2, EN61000-3-3, EN61000-3-11,   EN61000-3-12, EN61000-6-2, EN61000-6-3

Safety

IEC62109-1, IEC62109-2, IEC62040-1

Grid

AS/NZS 4777, VDE V 0124-100, V0126-1-1,   VDE-AR-N 4105,

CEI 0-21/CEI 0-16, EN50438/EN50549, G83/G59/G98/G99,   UTE C15-712-1, UNE206 007-1
