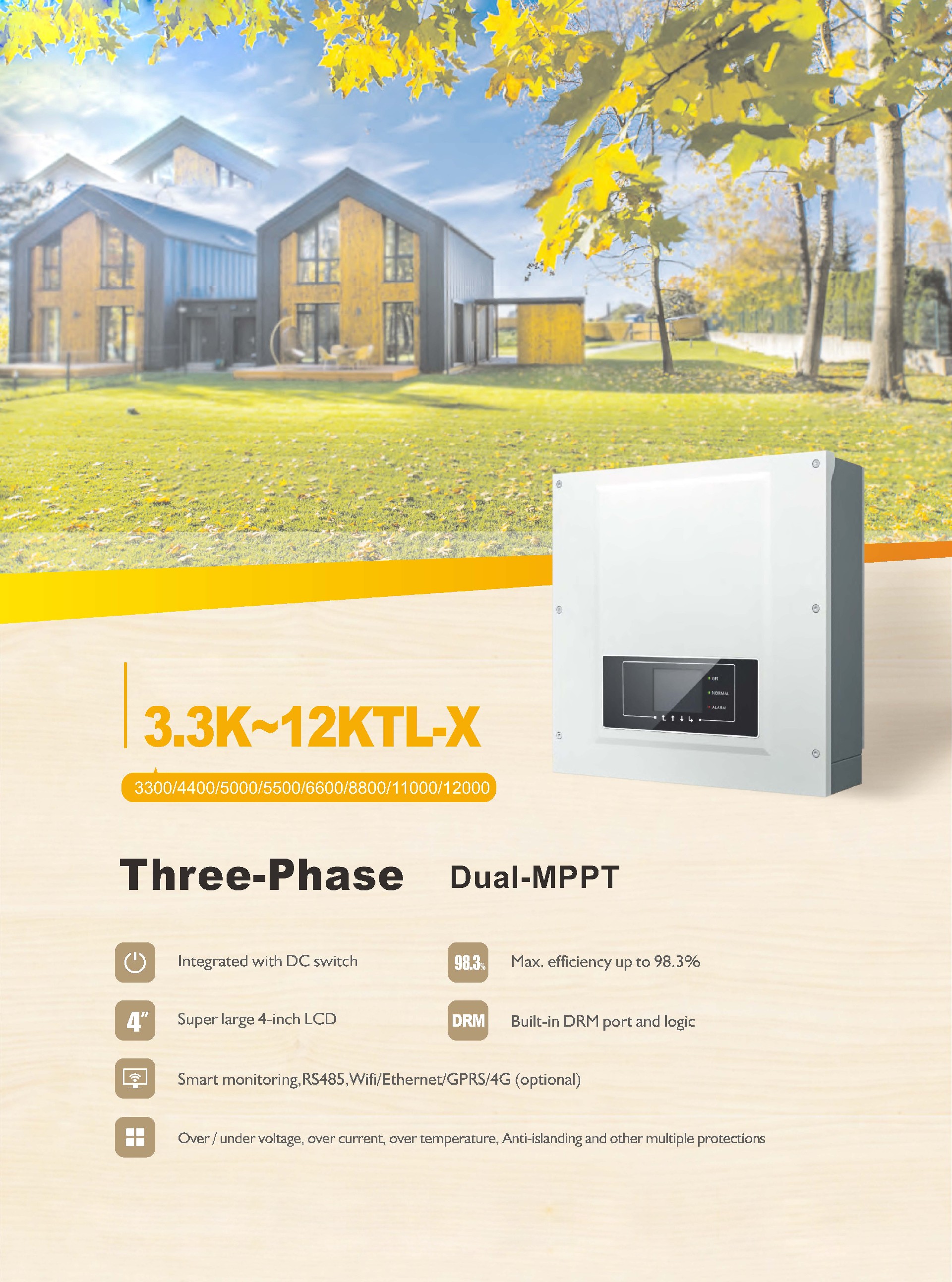

OOITECH 6.6KTL-X On-Grid Three-Phase Dual-MPPT Solar Inverter
OOITECH 6.6KTL-X On-Grid Three-Phase Dual-MPPT Solar Inverter

OOITECH 6.6KTL-X On-Grid Three-Phase Dual-MPPT Solar Inverter

Time: 2021-12-21
visits: 58
PV Out Power: 3.3-12KW
Phase: Three Phase
Grid: on-grid
Details

High-yield

All in one. Flexible and economical system solution

Low maintenance cost

Intelligent grid management

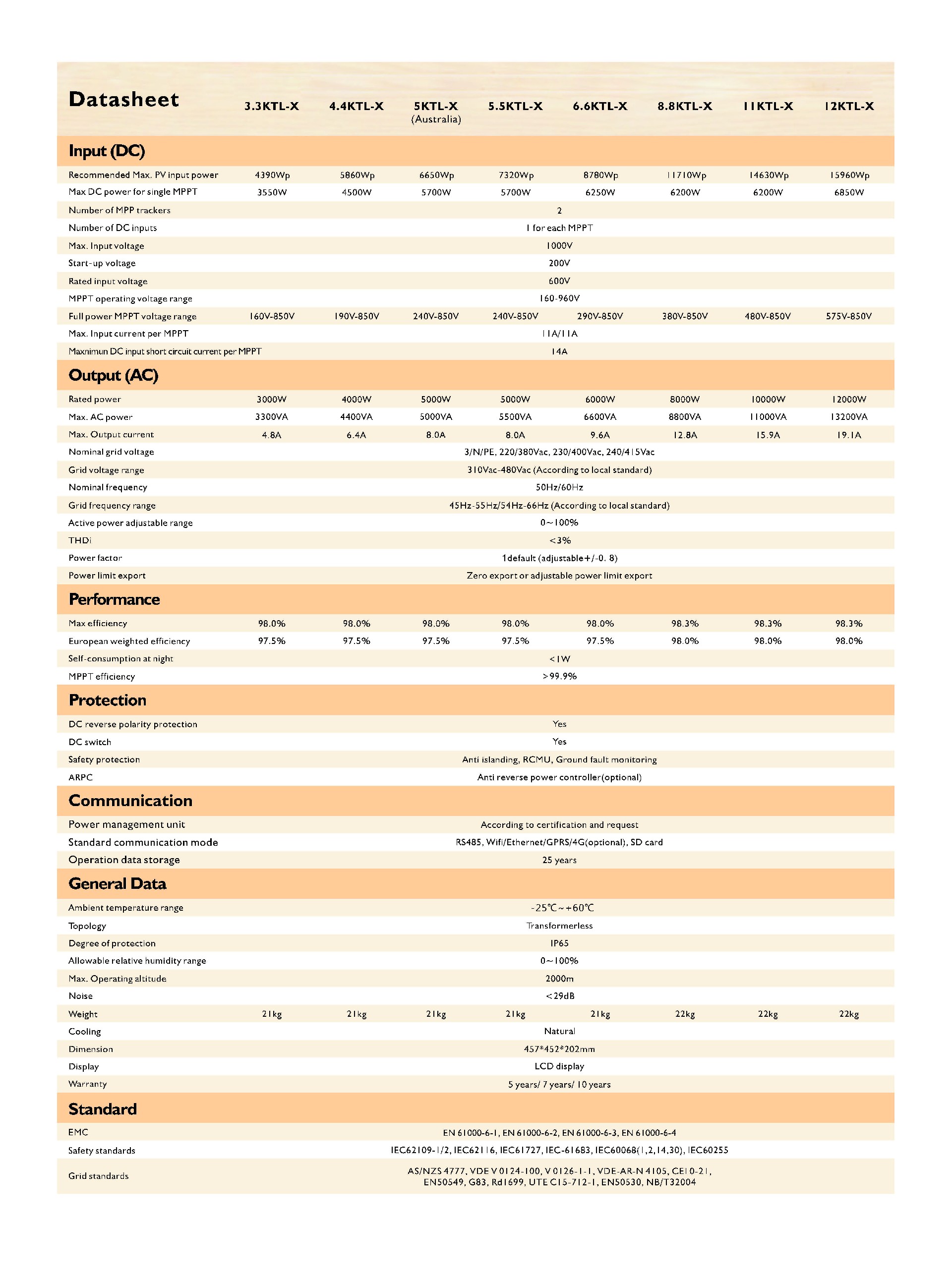

Datasheet

Ooitech

3.3KTL-X

Ooitech

4.4KTL-X

Ooitech

5KTL-X

Australia

Ooitech

5.5KTL-X

Ooitech

6.6KTL-X

Ooitech

8.8 KTL-X

Ooitech

11 KTL-X

Ooitech

12 KTL-X

Input   (DC)

Recommended Max. PV input power

4390Wp

5860Wp

6650Wp

7320Wp

8780Wp

11710Wp

14630Wp

15960Wp

Max DC power for single MPPT

3550W

4500W

5700W

5700W

6250W

6200W

6200W

6850W

Number of MPP trackers

2

Number of DC inputs

1 for each MPPT

Max. Input voltage

1000V

Start-up voltage

200V

Rated input voltage

600V

MPPT operating voltage range

160-960V

Full power MPPT voltage range

160V-850V

190V-850V

240V-850V

240V-850V

290V-850V

380V-850V

480V-850V

575V-850V

Max. Input current per MPPT

11A/11A

Maxnimun DC input short circuit   current per MPPT

14A

Outpu(AC)


Rated power

3000W

4000W

5000W

5000W

6000W

8000W

10000W

12000W

Max. AC power

3300VA

4400VA

5000VA

5500VA

6600VA

8800VA

11000VA

13200VA

Max. Output current

4.8A

6.4A

8.0A

8.0A

9.6A

12.8A

15.9A

19.1A

Nominal grid voltage

3/N/PE, 220/380Vac, 230/400Vac,   240/415Vac

Grid voltage range

310Vac-480Vac  (According to   local standard)

Nominal    frequency

50Hz/60Hz

Grid frequency range

45Hz-55Hz/54Hz-66Hz (According to   local standard)

Active power adjustable range

0~100%

THDi

<3%

Power factor

1default (adjustable+/-0. 8)

Power limit export

Zero export or adjustable power limit     export

Performance

Max Efficiency

98.0%

98.0%

98.0%

98.0%

98.0%

98.3%

98.3%

98.3%

European weighted efficiency

97.5%

97.5%


97.5%

97.5%

98.0%

98.0%

98.0%

Self-consumption at night

<1W

MPPT efficiency

>99.9%

Protection

DC reverse polarity protection

Yes

DC switch

Yes

Safety protection

Anti islanding, RCMU, Ground fault   monitoring

ARPC

Anti reverse power   controller(optional)

Communication

Power management unit

According to certification and request

Standard communication mode

Rs485, Wifi/Ethernet/GPRS(optional),   SD card

Operation data storage

25 years

General Data

Ambient temperature range

-25~+60

Topology

Transformerless

Degree of protection

IP65

Allowable relative humidity range

0~100%

Max. Operating altitude

2000m

Noise

<29dB

Weight

21kg

21kg

21kg

21kg

21kg

22kg

22kg

22kg

Cooling

Natural

Dimension

457*452*202mm

Display

LCD display

Warranty

5 years/ 7 years/ 10 years

Standard

EMC

EN 61000-6-1, EN 61000-6-2, EN   61000-6-3,   EN 61000-6-4

Safety standards

IEC62109-1/2, IEC62116, IEC61727,   IEC-61683,   IEC60068(1,2,14,30), IEC60255

Grid standards

AS/NZS 4777, VDE V 0124-100, V   0126-1-1, VDE-AR-N   4105, CEI 0-21,EN50549, G83, Rd1699, UTE C15-712-1,   EN50530, NB/T32004
