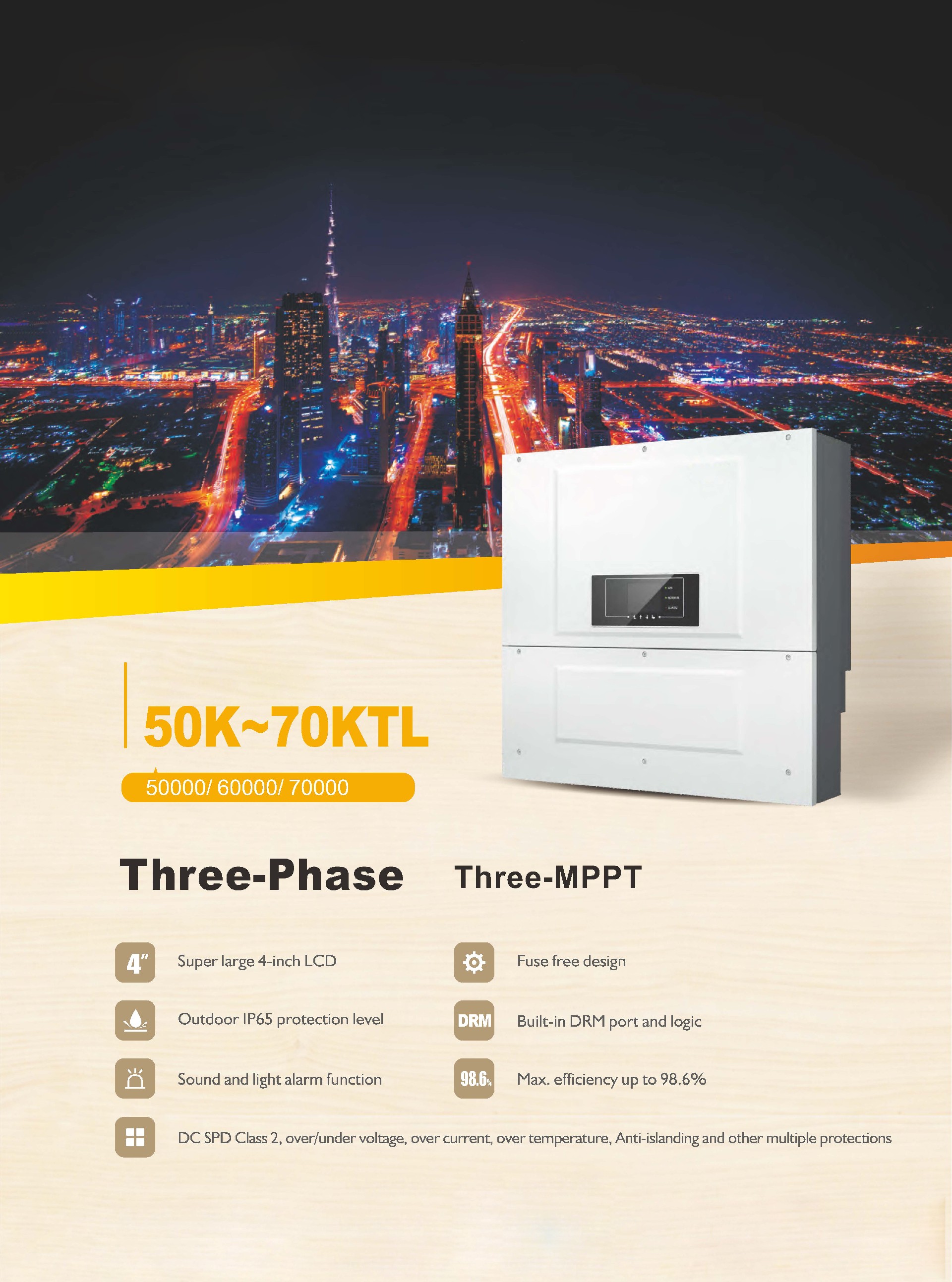

OOITECH 50000TL On-Grid Three-Phase Three-MPPT Solar Inverter
OOITECH 50000TL On-Grid Three-Phase Three-MPPT Solar Inverter

OOITECH 50000TL On-Grid Three-Phase Three-MPPT Solar Inverter

Time: 2020-06-18
visits: 38
PV Out Power: 50-70KW
Phase: Three Phase
Grid: on-grid
Details

High-yield

All in one. Flexible and economical system solution

Low maintenance cost

Intelligent grid management

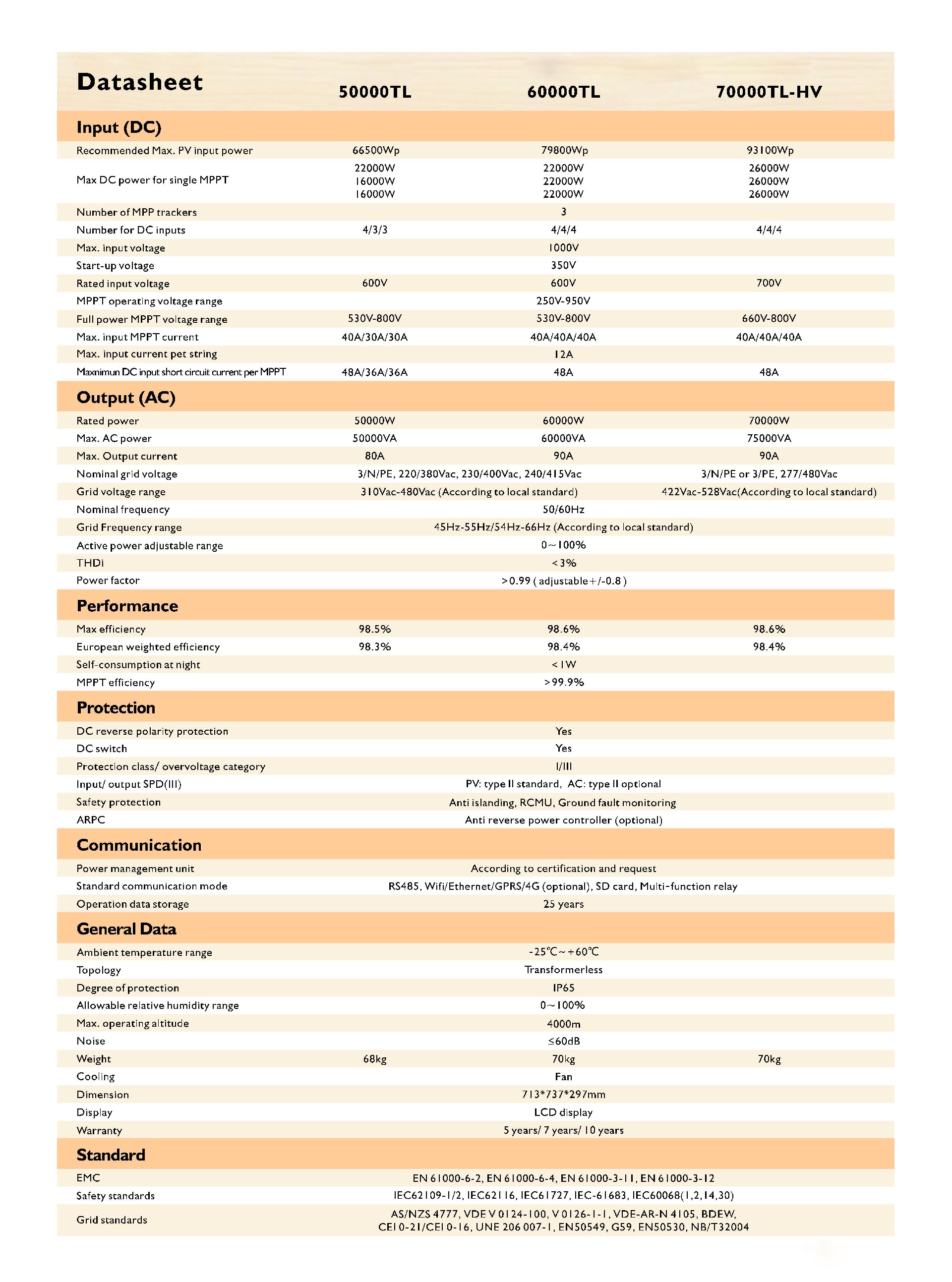

Datasheet

Ooitech

50000TL

Ooitech

60000TL

Ooitech

70000TL-HV

Input (DC)

Recommended Max. PV input power

66500Wp

79800Wp

93100Wp

Max DC power for single MPPT

22000W

16000W

16000W

22000W

22000W

22000W

26000W

26000W

26000W

Number of MPPT trackers

3

Number of DC inputs

4/3/3

4/4/4

4/4/4

Max. Input voltage

1000V

Start-up voltage

350V

Rated input voltage

600 V

600 V

700 V

MPPT operating voltage range

250-950V

Full power MPPT voltage range

530V-800V

530V-800V

660V-800V

Max. Input MPPT current

40A/30A/30A

40A/40A/40A

40A/40A/40A

Max. Input current pet string

12A

Maxnimun DC input short circuit current per MPPT

48A/36A/36A

48A

48A

Output (AC)

Rated power

50000W

60000W

70000W

Max. AC power

50000VA

60000VA

75000VA

Max. output current

80A

90A

90A

Nominal grid voltage

3/N/PE, 220/380Vac, 230/400Vac,   240/415Vac

3/N/PE or 3/PE, 277/480Vac

Grid voltage range

310Vac-480Vac (According to local standard)

422Vac-528Vac(According to local standard)

Nominal  frequency

50/60Hz

Grid frequency range

45Hz-55Hz/54Hz-66Hz (According to local   standard)

Active power adjustable range

0~100%

THDi

<3%

Power factor

>0.99 ( adjustable+/-0.8 )

Performance

Max. Efficiency

98.5%

98.6%

98.6%

European weighted efficiency

98.3%

98.4%

98.4%

Self-consumption at night

<1W

MPPT efficiency

>99.9%

Protection

DC reverse polarity protection

Yes

DC switch

Yes

Protection class/overvoltage

I/III

Input/output SPD(III)

PV: type II standard,  AC: type II optional

Safety protection

Anti islanding, RCMU, Ground fault monitoring

ARPC

Anti reverse power controller (optional)

Communication

Power management unit

According to certification and request

Standard communication mode

RS485, Wifi/Ethernet/GPRS (optional), SD   card, Multi-function relay

Operation data storage

25 years

General   Data

Ambient temperature range

-25~+60

Topology

Transformer-less

Degree of protection

IP65

Allowable relative humidity range

0~100%

Max. Operating altitude

4000m

Noise

60dB

Weight

70kg

Cooling

Fan

Dimension

713*737*297mm

Display

LCD display

Warranty

5 years/ 7 years/ 10 years

Standard

EMc

EN 61000-6-2, EN 61000-6-4, EN   61000-3-11, EN 61000-3-12

Safety standards

IEC62109-1/2, IEC62116, IEC61727,   IEC-61683, IEC60068(1,2,14,30)

Grid standards

AS/NZS 4777, VDE V 0124-100, V 0126-1-1,   VDE-AR-N 4105, BDEW, CE10-21/CE10-16, UNE 206   007-1,EN50549,G59,EN50530,NB/T32004

OOITECH 50000TL DATA.jpg
