OOITECH 1600TL-G3 On-Grid Single-Phase Single-MPPT Solar Inverter
OOITECH 1600TL-G3 On-Grid Single-Phase Single-MPPT Solar Inverter

OOITECH 1600TL-G3 On-Grid Single-Phase Single-MPPT Solar Inverter

Time: 2020-06-17
visits: 75
PV Out Power: 1-3KW
Phase: Single Phase
Grid: on-grid
Details

High-yield

All in one. Flexible and economical system solution

Low maintenance cost

Intelligent grid management

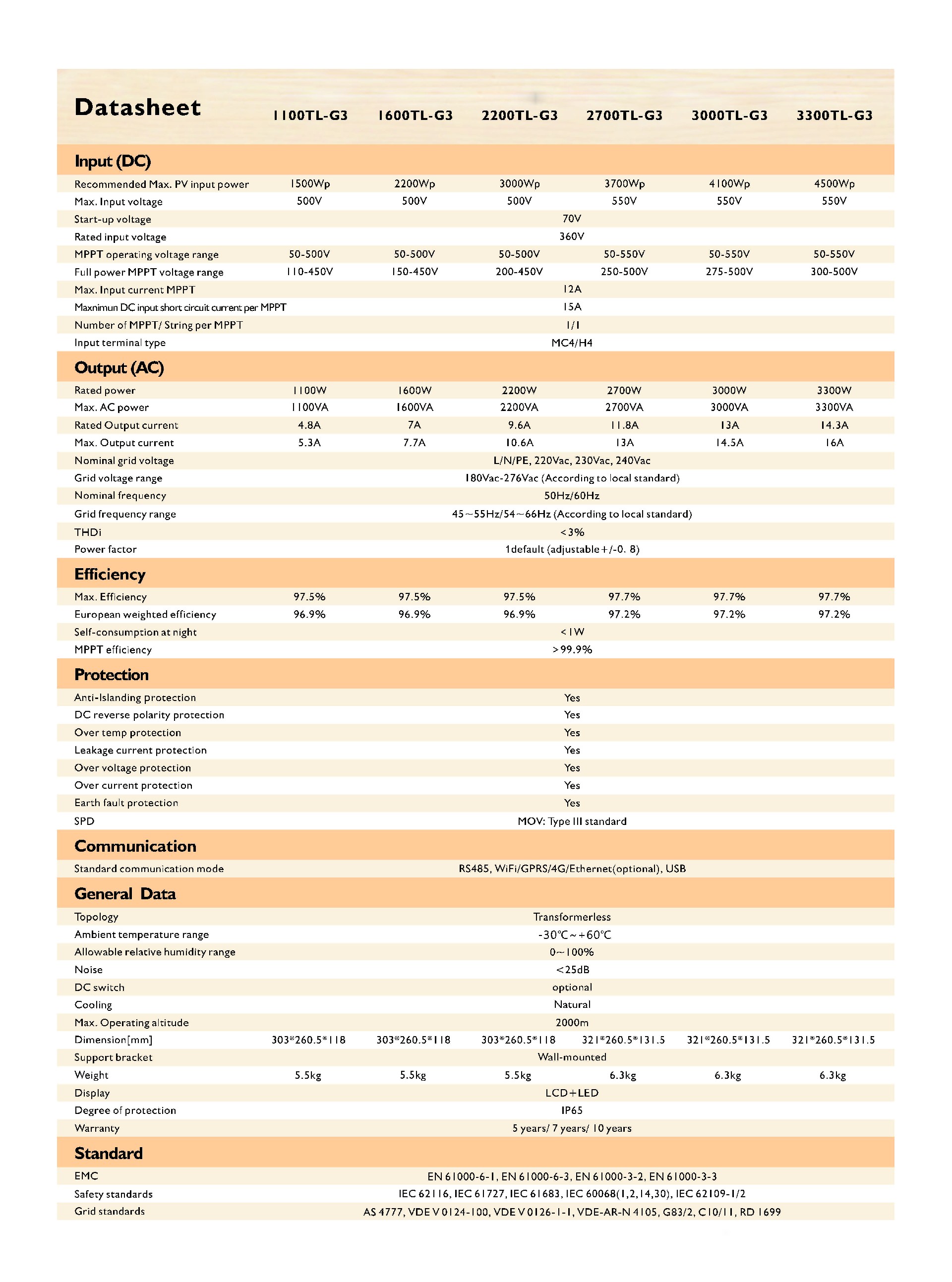

Datasheet

Ooitech

1100TL- G3

Ooitech

1600TL- G3

Ooitech

2200TL-G3

Ooitech

2700TL- G3

Ooitech

3000TL- G3

Ooitech

3300TL- G3

Input (DC)

Recommended Max. PV input power

1500Wp

2200Wp

3000Wp

3700Wp

4100Wp

4500Wp

Max. Input voltage

500V

500V

500V

550V

550V

550V

Start-up voltage

70V

Rated input voltage

360V

MPPT operating voltage range

50-500V

50-500V

50-500V

50-550V

50-550V

50-550V

Full power MPPT voltage range

110-450V

150-450V

200-450V

250-500V

275-500V

300-500V

Max. Input current MPPT

12A

Maxnimun DC input short circuit current per MPPT

15A

Number of MPPT/ String per MPPT

1/1

Input terminal type

MC4/H4

Output (AC)

Rated power

1100W

1600W

2200W

2700W

3000W

3300W

Max. AC power

1100VA

1600VA

2200VA

2700VA

3000VA

3300VA

Rated Output current

4.8A

7A

9.6A

11.8A

13A

14.3A

Max. Output current

5.3A

7.7A

10.6A

13A

14.5A

16A

Nominal grid voltage

L/N/PE, 220Vac, 230Vac, 240Vac

Grid voltage range

180Vac-276Vac (According to local standard)

Nominal  frequency

50Hz/60Hz

Grid frequency range

45~55Hz/54~66Hz (According to local standard)

THDi

<3%

Power factor

1 default (adjustable+/-0. 8)

Efficiency

Max. Efficiency

97.5%

97.5%

97.5%

97.7%

97.7%

97.7%

European weighted efficiency

96.9%

96.9%

96.9%

97.2%

97.2%

97.2%

Protection

Anti-lslanding  protection

Yes

DC reverse polarity protection

Yes

Over temp protection

Yes

Leakage current protection

Yes

Over voltage protection

Yes

Over current protection

Yes

Earth fault protection

Yes

SPD

MOV: Type III standard

Communication

Standard communication mode

RS485,  WiFi/GPRS/Ethernet(optional),  USB

General Data

Topology

Transformerless

Ambient temperature range

-30~+60

Allowable relative humidity range

0~100%

Noise

<25dB

DC switch

optional

Cooling

Natural     convection

Max. Operating altitude

2000m

Dimension[mm]

303* 260.5* 118

303* 260.5* 118

303* 260.5* 118

321* 260.5*131.5

321* 260.5*131.5

321* 260.5*131.5

Support bracket

Wall-mounted

Weight

5. 5kg

5. 5kg

5. 5kg

6. 3kg

6. 3kg

6. 3kg

Display

LCD+LED

Degree of protection

IP65

Warranty

5 years/ 7 years/ 10 years

Standard

EMC

EN 61000-6-1, EN 61000-6-3, EN 61000-3-2,   EN 61000-3-3

Safety standards

IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30),   IEC 62109-1/2

Grid   standards

AS 4777, VDE V 0124-100, VDE V 0126-1-1, VDE-AR-N   4105, G83/2,C10/11, RD 1699


OOITECH 1600TL-G3  DATA .jpg
